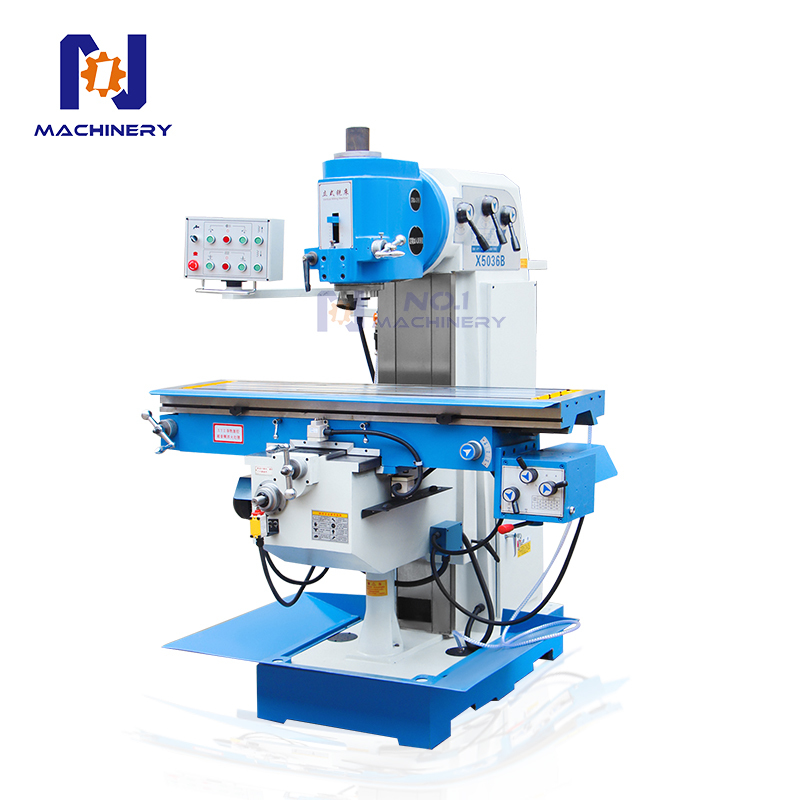

X5036B Manual Vertical Metal Mill Machine Single Spindle Milling Machine

Brand Name : Zaozhuang NO.1

Model Number : X5036B

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 6000USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size(mm) : 1500x360

Table travel(mm) : 1000x360x400

Workbench maximum overload(kg) : 300

Spindle taper : ISO40(V) ISO50(H)

Spindle speed range(rpm) : 60-1700

Spindle center to table distance(mm) : 80-440

Spindle motor power(kw) : 4/5.5

Contact Now

X5036B Manual Vertical Metal Milling Machine Vertical Single Spindle Milling Machine

The X5036 is a versatile and robust vertical milling machine. It features a rigid spindle for efficient milling of planes, bevels, grooves, and gears. With large longitudinal and cross table travel and strong load capacity, it is easy to operate and widely used in various machining and maintenance workshops.

Product features:

1. X/Y Axis Automatic Tool Feed & Z Axis Electric Lift:
The X and Y axes are equipped with automatic tool feed, allowing for precise and automated movement along these axes.
The Z axis features electric lift, enabling easy and controlled vertical movement.
2. Spindle Options:
X5036A: The spindle is fixed, meaning it does not move vertically.
X5036B: The spindle has a stroke of 70mm, allowing for vertical movement over this range.
3. Integrated Operation Panel:
The machine comes with an integrated operation panel, providing a centralized control interface for ease of use an operation.
4. Manual Oil Pump:
A manual oil pump is included for lubrication purposes, ensuring smooth operation and maintenance of the machine.

Standard Configuration:

Integrated Control Panel

X／Y automatic feed

Electric lift of Zaxis

Manual oil pump

X5036B spindle stroke 70mm

Product specification:

Name
Unit
X5032
X5036
Table size
mm
1500*320
1500*360
Table travel
mm
1000*320*400
1000*360*400
Workbench maximum overload
kg
200
300
X direction (table longitudinal)manual /Auto
mm
1000
1000
Y direction (slide lateral)manual /Auto
mm
320
360
Z direction (lifting table vertical)manual /Auto
mm
380
400
Fast moving speed
mm/min
15-370
15-370
Spindle aperture
mm
29
29
Spindle speed range
rpm
40-1300
60-1700
Spindle speed series
steps
18
12
Maximum rotation angle of end mill head
°
±45
±45
Spindle center to table distance
mm
60-430
80-440
Spindle motor power
kw
4
4/5.5
Dimensions
mm
2294*1770*1904
1700*1680*1880
Machine weigh (about)
kg
1800
2200/2400

Details Display:

X5036B Manual Vertical Metal Mill Machine Single Spindle Milling Machine

X5036B Manual Vertical Metal Mill Machine Single Spindle Milling Machine

X5036B Manual Vertical Metal Mill Machine Single Spindle Milling Machine

X5036B Manual Vertical Metal Mill Machine Single Spindle Milling Machine
