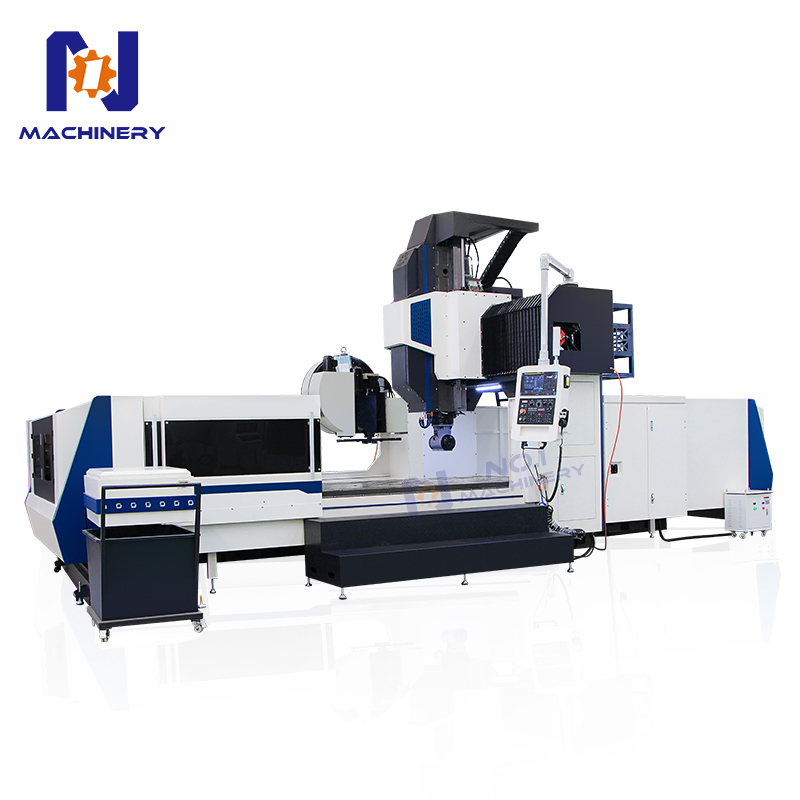

GMC3025 CNC Gantry Type Machining Center Heavy Duty 3m Gantry CNC Milling Machine BT50

Name: GMC3025 CNC Gantry Type Machining Center Heavy Duty 3m Gantry CNC Milling Machine BT50
Brand: Zaozhuang NO.1
Price: 105000 USD

Quality GMC3025 CNC Gantry Type Machining Center Heavy Duty 3m Gantry CNC Milling Machine BT50 for sale

Brand Name : Zaozhuang NO.1

Model Number : GMC3025

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 105000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 2300X3000

X/Y/Z Axis stroke（mm） : 3000*2700*1000

Width of gantry(mm) : 2700

High of gantry(mm) : 1280

Spindle Specifications (Model/Installation Diameter) : BT50-Φ200

T-shaped groove for table(mm) : 11-28X200

Worktable load bearing : 10T

Contact Now

GMC3025 Cnc Gantry Machining Center Heavy Duty 3 Meter Gantry Cnc Milling Machine BT50

Product Description:

The GMC3025 is a high-rigidity, high-precision gantry machining center featuring premium cast iron bed and precision roller guides for exceptional stability and durability. Equipped with high-power motorized spindle and advanced CNC system, it enables high-speed precision machining, making it ideal for manufacturing large complex components in energy equipment and rail transportation industries.

Standard Configuration:

Syntec 22MA CNC control system
BT50 Taiwan 6000 RPM spindle
Taiwan HIWIN precision ball screws
Taiwan HIWIN 3-axis roller linear guides
Taiwan OKADA 24-disc ATC
Electrical cabinet air cooling exchanger

Detailed Configuration:

Spindle unite:kenturn/OKADA/volis
Electricals:Schneider
Tool magazine:OKADA/AIMACH
Tool cylinder:tenio
Lubrication pump:HERG
Bearing:SKF/NACHI
Coupling:R+W
Linear rails:HIWIN/PMI
Lubrication pump:HERG
Guide rail protection:haidong

Product Specification:

  	 			Main Technical Parameters
 			GMC3025
 			GMC4025

 			Work table size (width × length) (mm)
 			2300×3000
 			2300×4000

 			Stroke in the moving direction of the table (X-axis mm)
 			3000
 			4000

 			Stroke in the moving direction of the spindle carriage (Y-axis mm)
 			2700(side stroke 3050)
 			2700(side stroke 3050)

 			Stroke in the up and down movement direction of the spindle (Z axis mm)
 			1000
 			1000

 			Gantry width (mm)
 			2700
 			2700

 			Gantry is too high (mm)
 			1400
 			1400

 			Distance from spindle end face to work table (mm)
 			340-1340
 			340-1340

 			Table T-slot (number - size x spacing)
 			11-28×200
 			11-28×200

 			Spindle Specifications (Model/Installation Diameter)
 			BT50/Φ210
 			BT50/Φ210

 			Spindle transmission mode
 			belt
 			Speed 6000r/min
 			Speed 6000r/min

 			the transmission ratio is 1.5:1;(optional 1.5:1)
 			the transmission ratio is 1.5:1;(optional 1.5:1)

 			ZF deceleration + belt (optional)
 			The speed is 6000r/min and the transmission ratio is 4:1;
 			The speed is 6000r/min and the transmission ratio is 4:1;

 			Gear Head (Weimars)
 			speed 6000r/min, Transmission ratio 4.4:1
 			speed 6000r/min, Transmission ratio 4.4:1

 			Rapid traverse feed rate (m/min)
 			10
 			10

 			Cutting feed rate (m/min)
 			6
 			6

 			X, Y, Z axis ball screw specifications/pitch
 			X:8020, Y:6316, Z:5010
 			X:8020, Y:6316, Z:5010

 			X, Y, Z axis guide rail specifications / number of sliders
 			X axis: roller guide 55/10;
 			X axis: roller guide 55/14;

 			Y axis: roller guide 55/4;
 			Y axis: roller guide 55/4;

 			Z axis: rectangular slide
 			Z axis: rectangular slide

 			X, Y, Z axis servo motor transmission mode and transmission ratio
 			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive
 			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)
 			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive
 			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

 			Spindle motor selection recommendation
 			22kW wide area motor
 			22kW wide area motor

 			X, Y, Z three-phase servo motor recommendation
 			≥ X:50N m; Y:40N m; Z:30N m (brake)
 			≥ X:50N m; Y:40N m; Z:30N m (brake)

 			Optical machine dimensions
 			6500x5130x4300
 			8535x5130x4300

 			(length × width × height) (mm)

 			Workbench load (t)
 			10
 			12

 			Light machine weight about (t)
 			34
 			39

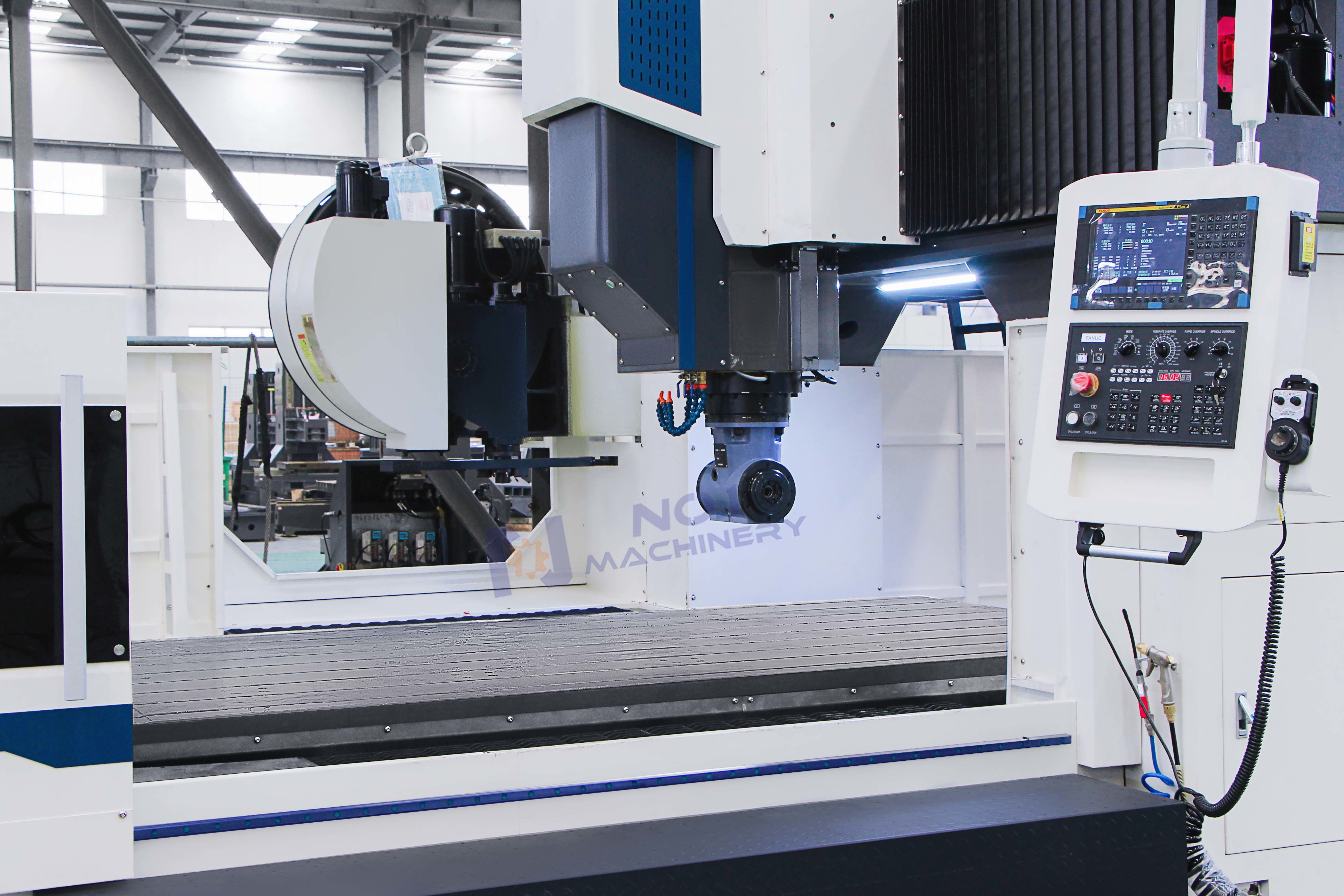

Details Display:

GMC3025 CNC Gantry Type Machining Center Heavy Duty 3m Gantry CNC Milling Machine BT50
