XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine

Product Categories
Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine

Brand Name : Zaozhuang NO.1

Model Number : XK7126

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 15800USD

Payment Terms : T/T

Supply Ability : 1000 sets/month

Delivery Time : 15 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Table size : 800X260mm

Max. table load : 200kg

X–axis travel : 460mm

Y–axis travel : 360mm

Z–axis travel : 400mm

Spindle nose to table : 125-500mm

Spindle center to column surface distance : 315mm

Spindle taper : BT30/BT40

Main motor power : 3.7kw

Contact Now

XK7126 Metal Milling Cnc 3-axis Vertical Cnc Milling Machine Factory Price
Product Description:
1. XK7126 adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb structure.
2.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
3. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
4. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
Standard Configuration:
1. GSK 980 mdi
2.Three axis CNC
3.Spindle speed 8000rpm
Optional Configuration:
1. System :Siemens, FANUC, Mitsubishi, KND
2.Taiwan OKADA 16 -Disc-atc
3.CNC dividing head
4.Top Tailstock
5.Full protection
Product Specification:
CNC milling machine
unit
XK7126
Table size
mm
800X260
Max. table load
kg
200
T slot qty-width*distance
3-14x75
spindle speed
r p m
60-8000
spindle nose to table surface
mm
125-500
Spindle center to Column surface
mm
315
Spindle taper
BT30/BT40
Main motor power
kw
3.7(servo)
X axis travel
mm
460
Y axis travel
mm
300
Z axis travel
mm
400
X/Y/Z axis rapid feed
m/min
8/8/6
Positioning accuracy
mm
±0.01
Repeatabeility accuracy
mm
±0.005
Net Weight
kg
2200
Overall Dimension
mm
1900X1620X2000
Details Display:

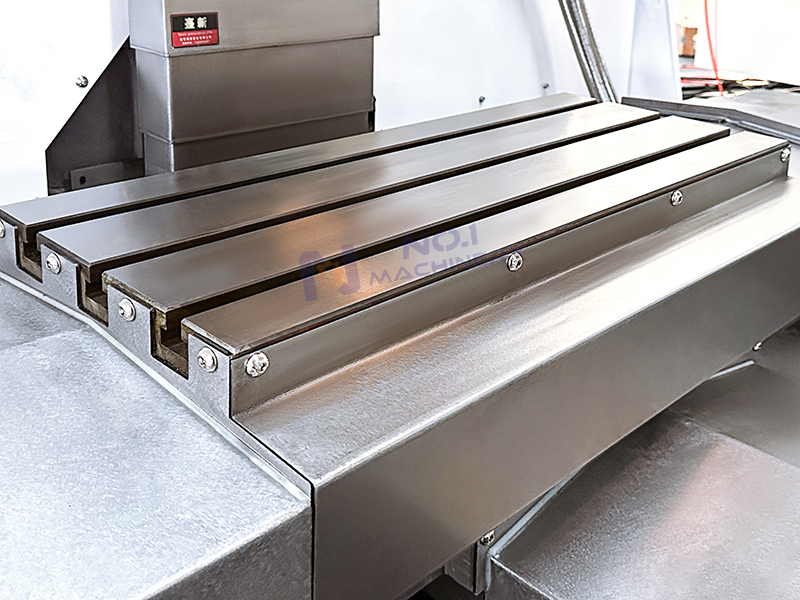

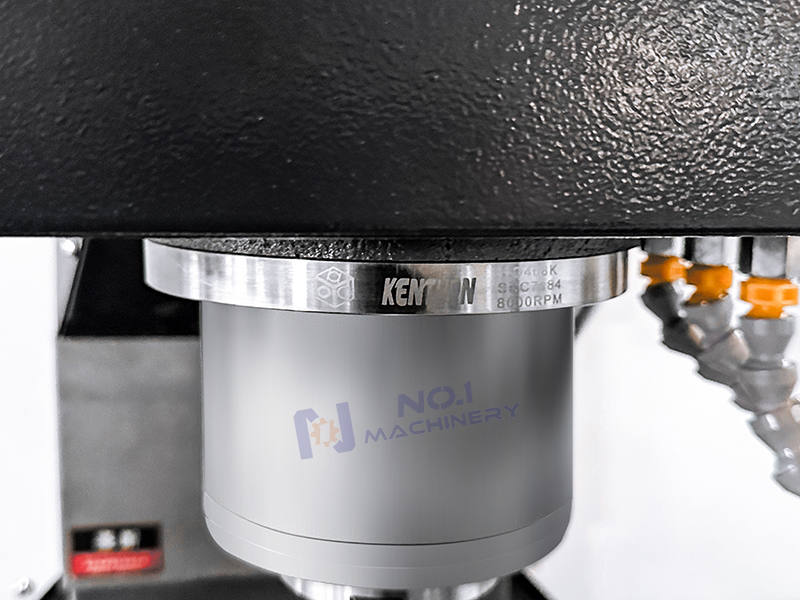

XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine

XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine

XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine

XK7126 Metal Milling CNC 3 Axis Vertical Milling Machine
